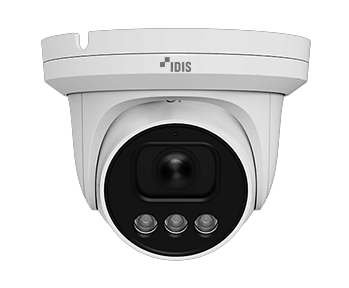

Full HD Micro Dome Camera
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens type | Fixed-focal |
| Focal Length | f=2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 113.74º(H), 61.5º(V), 134.5º(D) |
| Pan/Tilt Range | Pan: -170° ~ 170°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90° |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED on) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 15m / 49.2ft (1ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode Sharpness, Contrast, Colors, Brightness Control |
| Backlight Compensation | On / Off |
| Image Stabilizer | – |
| De-fog | – |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.264(MP), M-JPEG, H.265 |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 – CBR/ VBR, H.265 – CBR / VBR |
| Audio Compression | – |
| Two-way Audio | – |
| IP Camera Protocol | DirectIP v2.0, ONVIF Profile S |
| Max. Frame Rate | DirectIP™ Mode : 30ips : 1920 x 1080 (WDR) |
| Supports Resolution | DirectIP™ Mode : 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-Video Streaming | DirectIP™ Mode : Quadruple streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-User Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP™ Mode : DirectIP NVR Connection, IDIS Web, IDIS Mobile (Plus), IDIS Solution Suite, IDIS Cloud Manager |
| Ethernet | RJ45(10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | – |
| Alarm & Event | |
| Trigger Event | Motion Detection, Tampering, TripZone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In / Out | – |
| Alarm In / Out | – |
| Environmental | |
| Vandal Resistance | – |
| Outdoor Ready | – |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE(IEEE 802.3af class 2) |
| Power Consumption | PoE: IEEE 802.3af (Class 2), 3.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø86mm x 59mm |
| Weight | 0.10kg |
