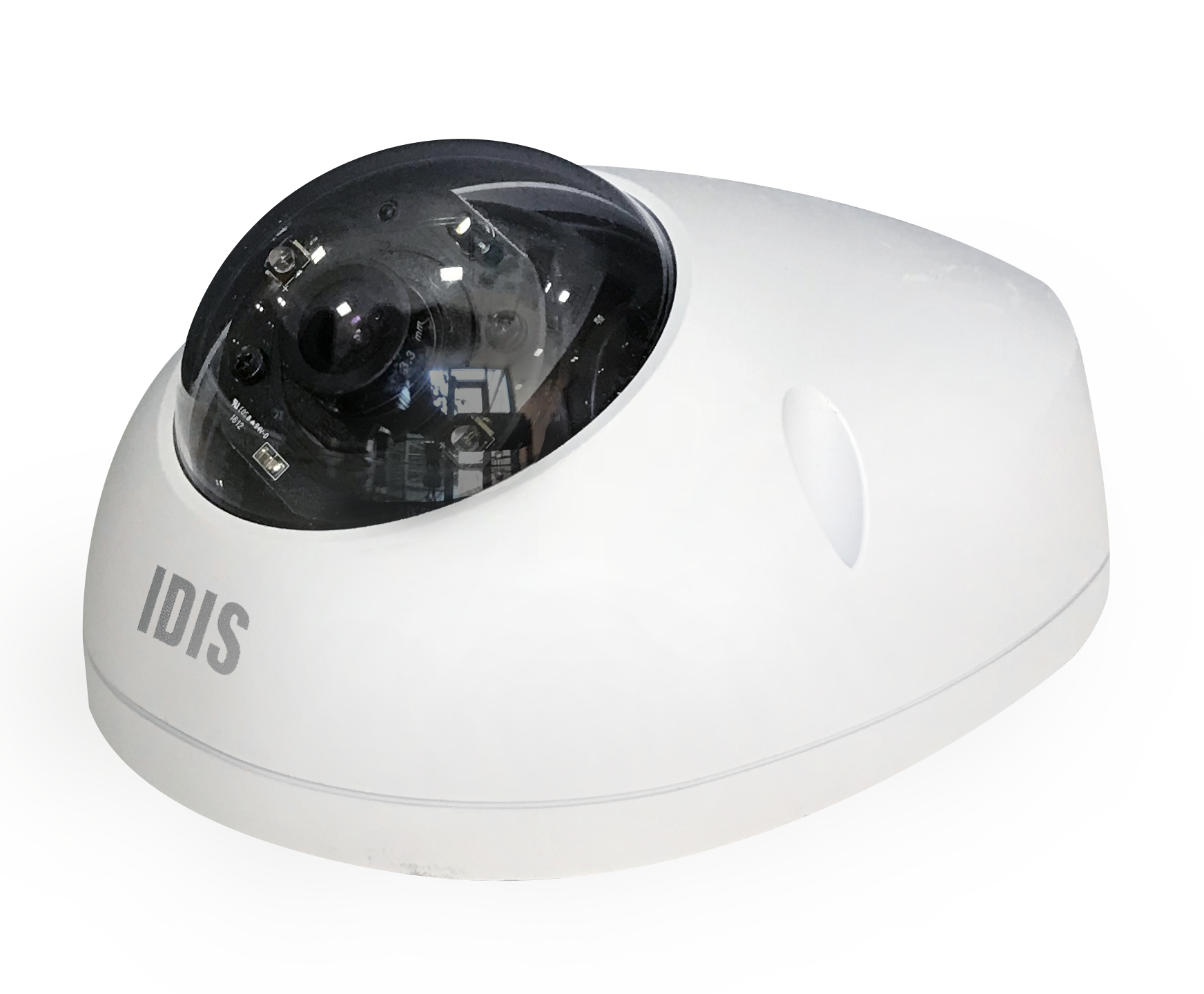

Mobile Full HD IP66 Dome Camera
ㆍEasy installation with DirectIP Mobile NVR
ㆍFull HD (1080p) resolution
ㆍFixed-focal lens(f=3.3mm)
ㆍ48VDC (over Ethernet)
ㆍDay&night (ICR)
ㆍIP66
DC-M1212W-3.3
Description
| Video | |
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens type | Fixed-focal |
| Focal Length | f=3.3mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 101.2º(H), 61.1º(V), 124.4º(D) |
| Min. Illumination | COLOR : 0.07 lux F2.0 |
| S/N Ratio | 31.2 dB |
| Dynamic Range | 74.7 dB |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | – |
| Image Setting | Auto Exposure, Auto White Balance |
| Digital Noise Reduction | Yes |
| Backlight Compensation | Black Level Correction |
| Image Stabilizer | – |
| Network | |
| Video Compression | H.264(MP), M-JPEG |
| Supports Resolution | 1920×1080, 1280×720, 864×480, 640×360, 432×240 |
| Ethernet | 10/100M |
| Edge Storage | – |
| Alarm & Event | |
| Trigger Event | Motion Detection, Tampering, TripZone |
| Event Buffering (Pre & Post) | yes (up to 60MB) |
| Audio In / Out | – |
| Alarm In / Out | – |
| Environmental | |
| Vandal Resistance | IK10 |
| Out-door Ready | IP66 |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 48VDC (over Ethernet) |
| Power Consumption | 4.1W |
| Approval | FCC (Class A), CE, MIL-STD-810F |
| Mechanical | |
| Dimensions (W x H x D) | 100mm x 65,4mm x 140mm (3.94″ x 2.57″ x 5.5″) |
| Weight | 0.53 kg (1.17 lb) |
