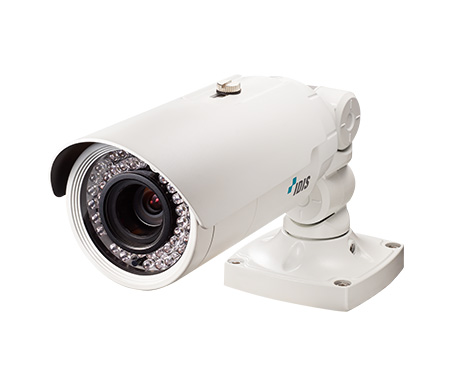

Full HD IR Bullet Camera
ㆍEasy installation with DirectIP NVR
ㆍFull HD (1080p) resolution
ㆍMotorized Vari-focal(f=3.3 – 10mm)
ㆍVandal proof/IP66 supports
ㆍPoE(IEEE 802.3af class 3), 12V DC
ㆍDay&night (ICR)
ㆍIR LED (Distance : 30m)
ㆍ3-axis mechanical design for installation
ㆍSupports ONVIF
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens type | Motorized Vari-focal |
| Focal Length | f=3.3 – 10mm |
| Aperture | F1.3 – 2.5 |
| Iris Control | DC Auto Iris |
| Angular Field of View | Wide : 99.8º(H), 52.2º(V), 118.2º(D) Tele : 33.5º(H), 18.6º(V), 38.3º(D) |
| Min. Illumination | COLOR : 0.1 lux F1.3 B/W : 0 lux (IR LED ON) |
| S/N Ratio | 31.2 dB |
| Dynamic Range | 74.7 dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter(1/7.5,1/15) |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30 m (42 ea) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Digital Noise Reduction | Configurable 2DNR |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| Privacy Masking | 16 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 BNC |
| Network | |
| Video Compression | H.264(MP), M-JPEG |
| Bitrate Control | H.264 – CBR / VBR |
| Max. Frame Rate | 30fps : 1920 x 1080 |
| Audio Compression | – |
| Two-way Audio | – |
| IP Camera Protocol | DirectIP™ Mode : DirectIP |
| Compatibility Mode : IDIS ONVIF Profile S |
|
| Supported Resolution | DirectIP™ Mode : 1920×1080, 1280×720, 704×480, 640×360, 352×240 |
| Compatibility Mode : 1920×1080, 1280×720, 704×480, 352×240 | |
| Multi-Video Streaming | DirectIP™ Mode : Quadruple streaming |
| Compatibility Mode : Triple streaminging | |
| Network Protocols | DirectIP™ Mode : Direct IP Protocol |
| Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
|
| Security | DirectIP™ Mode : SSL Encryption |
| Compatibility Mode : Multi-User Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption |
|
| Remote Access Client | DirectIP™ Mode : DirectIP™ NVR connection |
| Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite | |
| Ethernet | RJ45(10/100BASE-T) |
| Edge Storage | – |
| Alarm & Event | |
| Trigger Event | Motion Detection, Tampering, TripZone |
| Event Buffering (Pre & Post) | yes (up to 60MB) |
| Event Notification | Remote S/W, Email (with Image) |
| -Pre-recorderd Voice Alert (IDIS protocol) | – |
| Audio In/ Out | – |
| Alarm In / Out | – |
| Environmental | |
| Vandal Resistance | Yes |
| Out-door Ready | IP66 |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE(IEEE 802.3af class 3) |
| Power Consumption | 9.24W |
| Approval | FCC, CE, KC, UL |
| Mechanical | |
| Dimensions (W x H) | Ø73.5mm x 290.2mm (Ø2.9″ x 11.43″) |
| Weight | 1.17 kg (2.58 lb) |
