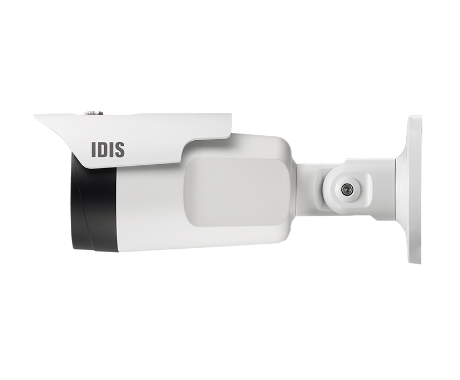

Full HD IR Bullet Camera
ㆍEasy installation with DirectIP NVR
ㆍFull HD (1080p) resolution
ㆍMotorized vari-focal lens (f=2.8 – 12mm)
ㆍMicro SD/SDHC/SDXC
ㆍTwo-way audio (except DC-T4236WRX-A)
ㆍAlarm in/out
ㆍIK10 / IP67 supports
ㆍPoE (IEEE 802.3af class 3), 12V DC
ㆍDay&night (ICR)
ㆍTrue Wide Dynamic Range (WDR)
ㆍIR LED (Distance: 30m / 98.4ft)
ㆍ3-axis mechanical design for installation
ㆍSupports ONVIF
ㆍNDAA Compliant
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=2.8-12mm |
| Aperture | F 1.4~2.8 |
| Iris Control | DC IRIS |
| Angular Field of View | Wide : 98º(H) 51º(V) 116º(D) Tele : 33º(H) 19º(V) 38º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30 m (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode (Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | – |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG, |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law (except DC-T4236WRX-A) |
| Two-way Audio | Yes (except DC-T4236WRX-A) |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile (Plus), IDIS Solution Suite, IDIS Cloud Manager |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1 / 1 (except DC-T4236WRX) |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3), DC12V |
| Power Consumption | 12V=, 0.78A, 9.3W PoE, IEEE 802.3af(Class 3) , 8.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (W x H) | Ø77 X 244.1mm |
| Weight | 0.84 kg |
