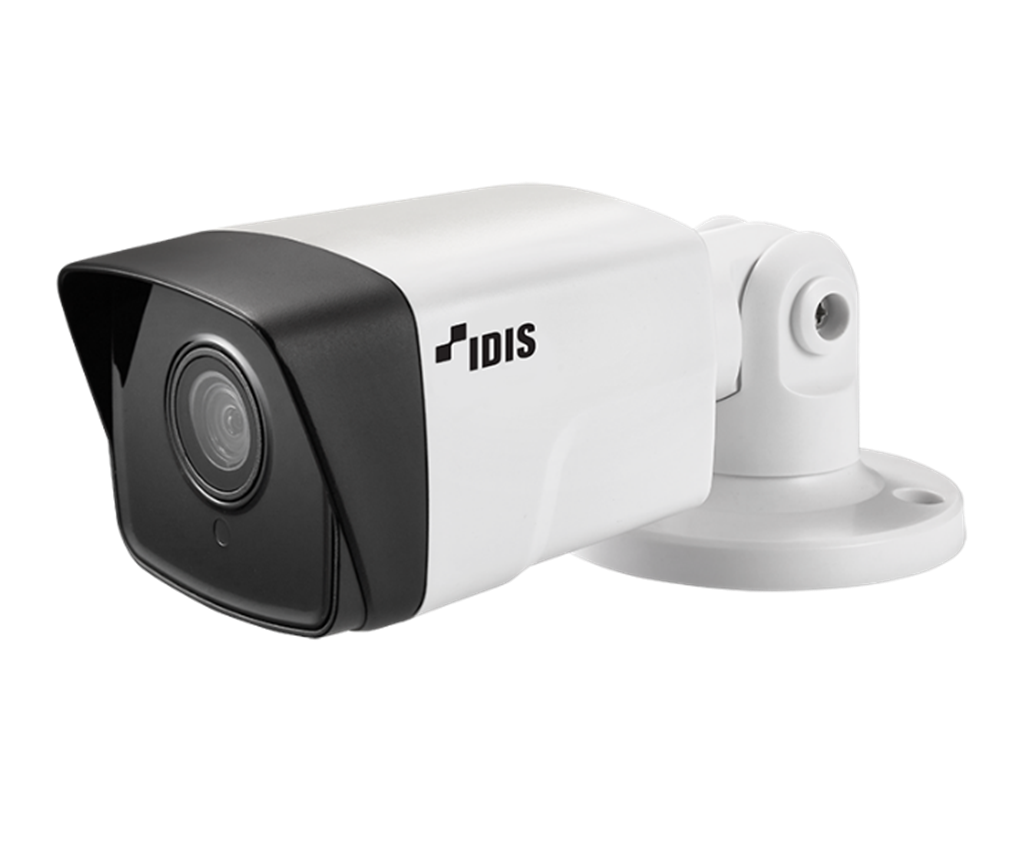

8MP IR Bullet Camera
ㆍEasy installation with DirectIP NVR
ㆍ8MP (3840 x 2160) resolution
ㆍFixed-focal lens (f=3.3mm)
ㆍmicro SD/SDHC/SDXC
ㆍTwo-way audio (except DC-T4811WRX-A)
ㆍAlarm in / out
ㆍIK10 / IP67 supports
ㆍPoE (IEEE 802.3af Class 3)
ㆍDay and night (ICR)
ㆍTrue wide dynamic range (WDR)
ㆍIR LED (Distance : 30m)
ㆍ3-axis mechanical design for installation
ㆍSupports ONVIF
ㆍNDAA Compliance
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens type | Fixed-focal |
| Focal Length | f=3.3mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 101.3º(H) 54.5º(V) 119.7º(D) |
| Min. Illumination | COLOR : 0.2 lux F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day & Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30 m (4 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | – |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264(MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law (except DC-T4811WRX-A) |
| Two-way Audio | Yes (except DC-T4811WRX-A) |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 3840 x 2160 15ips : 3840 x 2160(WDR) |
| Supported Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Multi-Video Streaming | Quadruple streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | SSL Encryption, Multi-User Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Remote Access Client | DirectIP™ NVR connection, IDIS Web, IDIS Mobile (Plus), IDIS Solution Suite, IDIS Cloud Manager |
| Ethernet | RJ45(10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm & Event | |
| Trigger Event | Motion Detection, Alarm in, Audio Detection, Tampering, TripZone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1 / 1 (except DC-T4811WRX-A) |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Resistance | IK10 |
| Out-door Ready | IP67 |
| Operating Temperature | -20°C ~ 55°C (-22°F ~ 131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE(IEEE 802.3af class 3) |
| Power Consumption | PoE, IEEE 802.3af(Class 3), 9.0W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (W x H x D) | 75mm X 70mm X 197mm (2.95″ x 2.75″ x 7.75″) |
| Weight | 0.66 kg |
