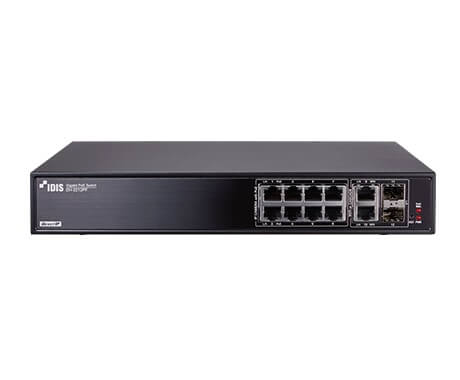

DirectIP™ Gigabit PoE Switch
ㆍIndividual port for data transmission to DirectIP™ NVR
ㆍPoE (IEEE 802.3af, IEEE 802.3at) compliant
ㆍMaximum per-device PoE delivery of 140W available for 1~8 RJ45 ports
ㆍCentral power control for greater network utility
ㆍSupports 10 RJ45 ports and 2 SFP slots
DH-2212PF
Description
| System | |
| CPU | Embedded MIPS |
| System Memory | 256MB SDRAM, 32MB Flash |
| Switching Capacity | 24Gbps |
| Connectivity | |
| Copper Service Port | 8 RJ45 Connectors (10/100/1000BASE-T) |
| Copper Uplink Port | 2 RJ45 Connectors (10/100/1000BASE-T) |
| Optical Uplink Port | 2 SFP Slot (1000BASE-X) |
| PoE Power | |
| supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 8 IEEE 802.3af PDs or up to 4 IEEE 802.3at PDs |
| PSE Power Budget | 140W |
| General | |
| Dimensions(W x H x D) | 280mm x 44mm x 180mm (11.0″ x 1.7″ x 7.1″) |
| Weight | 1.55Kg (3.42lb) |
| Operation Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Power Input | AC100-240V, 2.0~1.0A, 50/60Hz |
| Power Consumption | 160W |
| Approvals | FCC,CE,KC,UL,CB |
Downloads
| Firmware | |||
| Latest version | | ||
| Manual | NL | EN | FR |
| Operating Manual | | | |
| Datasheet | NL | EN | FR |
| Version 8.3 | | | |
| A&E specifications | NL | EN | FR |
| Architectural and Engineering Specifications | | | |
| BIM | |||
| Building Information Model | | ||
Dimensions
