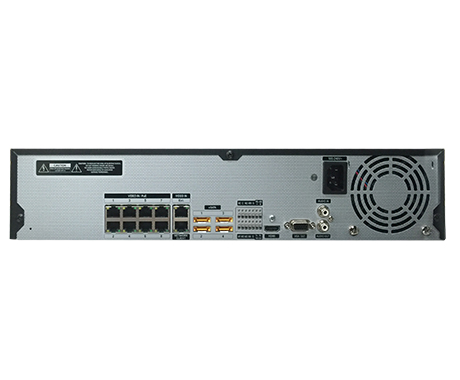

DirectIP™ 6300 Series H.265 4K Recorder
ㆍTotal incoming throughput 270Mbps
ㆍUp to 240ips UHD real-time recording
ㆍSupports H.265 / H.264 codec
ㆍSupports UHD display
ㆍUp to 240ips live display
ㆍEasy to install, set-up and play with DirectIP™ cameras
ㆍBuilt-in 8 channel PoE Switch
ㆍExpandable up to 176TB using eSATA storage
ㆍSupports RAID 1
ㆍSupports one click network configuration through FEN service
ㆍSupports third party cameras (Axis, Panasonic, ONVIF™ )
DR-6308P-S
Out of stock
Description
| VIDEO | |
| Video Inputs | 8 IP channels |
| Max. Incoming Throughput | 270Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | 3840×2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x12 |
| RECORDING | |
| Max.Throughput | 140Mbps, 240ips@4K(UHD) |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Compression | H.264, H.265 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Alarm in, Audio detection, Motion detection, Trip-zone, Tampering, Video loss, Text-in, ANPR, etc. |
| PLAYBACK | |
| Performance | 8ch Full HD synchronous playback 4ch 4K playback |
| Search Mode | Time-lapse, Event log,Thumbnail, Motion, Text-in |
| Digital Zoom | x2 ~ x12 |
| STORAGE | |
| HDD | SATA x6, eSATA x4,(Up to 8TB capacity for each disk), RAID 1 supported |
| Total Capacity | 176TB=8TB x (6(Internal) 4×4(External)) |
| NETWORK | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video in Connection | Gigabit Ethernet(IP Camera) x8 Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| Camera Power | PoE(IEEE 802.3at class 4) supported 8 ports, 120W |
| Remote Data Export | IDIS Player, AVI, JPG |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite |
| INTERFACE | |
| Audio In/Out | Local(NVR) : 1 RCA / 1RCA + 1HDMI IP Camera :8 / 8 (Depending on IP Camera) |
| Alarm In/Out | Local(NVR) : 4 / 1 IP Camera :8 / 8 (Depending on IP Camera) |
| Alarm Reset In | 1 |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 430mm x 88mm x 410.8 mm (16.9″ x 3.5″ x 16.2″) |
| Unit Weight | 6.0kg (13.2lb) (with 1 HDD) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | AC 100-240 V, 50/60Hz, 3.0 – 1.5A |
| Power Consumption | Max. 200W (with 6 HDDs) |
| Approvals | FCC, UL, CE, CB, KC |
