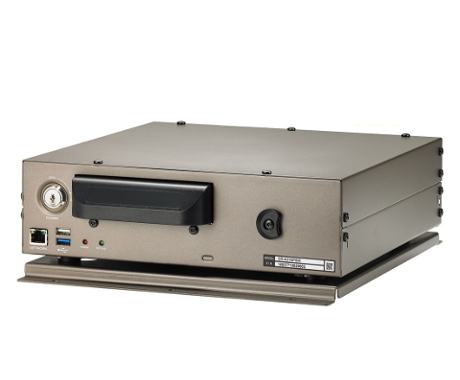

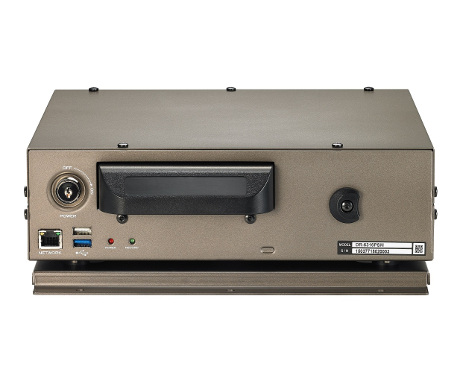

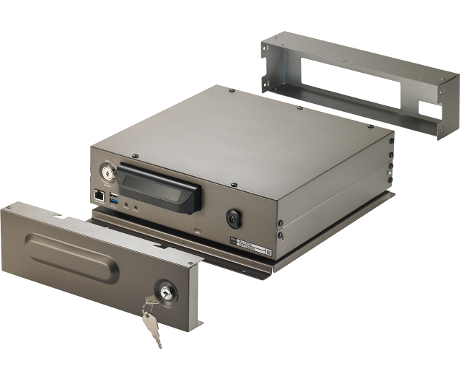

DirectIP™ 6300 Series H.265 Mobile Recorder
ㆍTotal incoming throughput 210Mbps
ㆍDual track recording
ㆍSupports H.265 / H.264 codec
ㆍSupports Full HD display
ㆍAutomatic backup of data over a Wi-Fi network
ㆍ3-axis mechanical accelerometer
ㆍBuilt-in battery to ensure archive continuity
DR-6316PSM
Description
| VIDEO | |
| Video Inputs | 16 IP channels |
| Max. Incoming Throughput | 210Mbps |
| Video Outputs | 1 HDMI |
| Display Resolution | 3840 x 2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| RECORDING | |
| Max.Throughput | 210Mbps, 480ips@Full HD + 480ips@640×360 (for long-term storage) |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Compression | H.264, H.265 |
| STORAGE | |

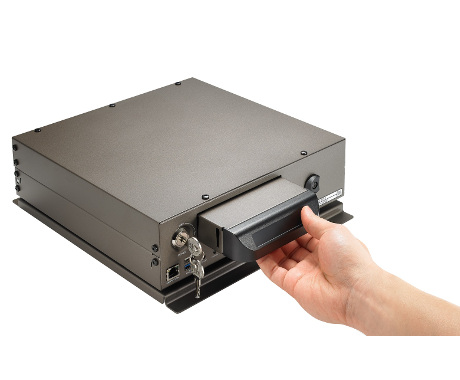

| HDD | SATA x1, eSATA x1 |

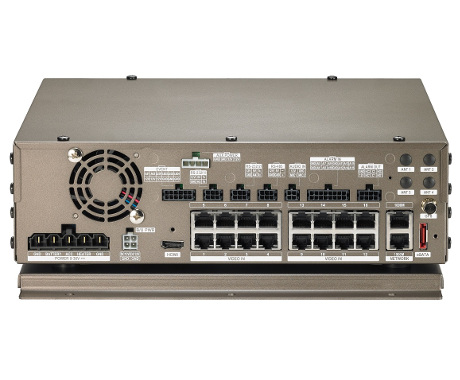

| NETWORK | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video in Connection | Gigabit Ethernet(IP Camera) x16 PoE + Gigabit Ethernet(Ext) x2 |
| Slots | 1 for connecting a Wi-Fi transceiver |
| INTERFACE | |
| Audio In/Out | Local(NVR) : 2 / 0 |
| Alarm In/Out | Local(NVR) : 16 / 2 |
| Serial Interface | RS232 (Terminal Block) x2, RS485 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| Special Sensors | GPS/GLONASS navigation system, 3-axis gyroscopic sensor, temperature sensor, voltage level sensor |
| GENERAL | |
| UNIT Dimensions (W x H x D) | 285mm x 100.37mm x 320.2 mm |
| Unit Weight | 5.08kg (without HDDs) |
| Working Temperature | 0°C to 50°C (from -30°C to 50°C with heater on) |
| Operating Humidity | 0% ~ 90% |
| Power Input | 9-36V DC |
| Approvals | FCC, CE, E-mark, MIL-STD-810G (only for protection against shock and vibration effects) |
Additional information
| Recorder: Video inputs | |
|---|---|
| Recorder: Max. Incoming Throughput | |
| Recorder: Video outputs | |
| Recorder: Display resolution | 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 3840 x 2160 |
| Recorder: Max. Recording Throughput | |
| Recorder: Recording resolution | |
| Recorder / Camera: Compression |
