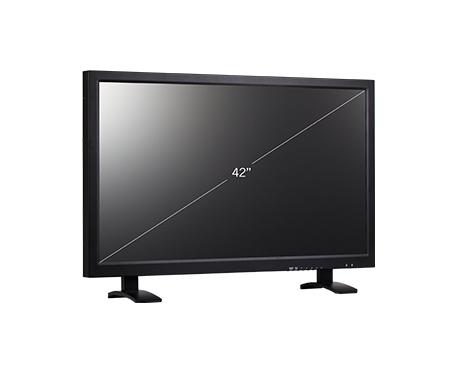

42-inch FHD LCD Monitor
ㆍFHD resolution (1920 x 1080)
ㆍCommercial grade “A” Panels Built
ㆍHi Performance Image Proceseeing Circuit
ㆍPower & Source Recovery
ㆍAuto Source Switching
ㆍPicture in Picture
SM-F421
Out of stock
Description
| Display | |
| Screen Size | 42″ |
| Resolution | 1920 x 1280@60Hz |
| Contrast Ratio | 3000:1 |
| Brightness | 350cd/m2 |
| Aspect Ratio | 16:9 |
| Color Depth | 16.7M |
| Viewing Angle(H/V) | 178˚/178˚ |
| Pixel Pitch | 0.4845mm x 0.4845mm |
| Response Time | 6.5ms |
| Scanning Frequency(Horizontal) | 31 ~ 80KHz |
| (Vertical) | 50 ~ 75Hz |
| Video System | NTSC/PAL |
| Audio | |
| Built-in Speakers | Yes /2W x2 |
| Gradual Volume Increase | Yes |
| Interface | |
| AV(Composite) In / Out | 2/2 |
| S-Video In / Out | 1/1 |
| RGB In (15Pin D-Sub) | 1 |
| Component (Y, Pb, Pr, Sound L/R) In | 1 |
| DVI In | 1 |
| HDMI In | 2 |
| Trigger In / DC12V Out | 1/1 |
| AV(Composite) Sound L/R (RCA Type) | 2 |
| PC stereo In | 1 |
| Speaker Out | 1 |
| Remote Control | |
| IR Transmitter | Yes |
| Special Features | |
| 3D comb Filter | Yes |
| Deinterlace Function | Yes |
| LCD Protection Glass | Not Available |
| Rack Mountable Kit | Not Available |
| Camera Mounting Hole | Not Available |
| OSD Language | English, French, Dutch, Italian, Spanish, Portugese |
| VESA™ Standard Compatible | Yes 600mm x 100mm x 100mm |
| Additional Information | |
| Cabinet Dimensions | |
| W x H x D | 986.4mmx617.1mmx180mm |
| Weight | 21.4Kg (46.30lbs) |
| Power Consumption | 67W |
| Power Source | AC110~240V(50/60Hz) |
| Cabinet | |
| Metal Cabinet | Black |
| Metal Stand | Black |
| Warranty | |
| Warranty: Parts/Labor | |
| MTBF (Approx.) | 30K hrs.(Panel) |
| Regulations | |
| Regulations | UL, FCC, CE-EMC(LVD) |
Additional information
| Monitor: Interface | Audio input, Audio output, BNC Video In, BNC Video Out, Component (Y, Pb, Pr, Sound L/R), DVI, HDMI, S-Video In, S-Video Out, VGA |
|---|---|
| Monitor: Resolution | |
| Monitor: Screen size |
Downloads
| Handleiding | NL | EN | FR |
| Bedieningshandleiding | | | |
| Datasheet | NL | EN | FR |
| Versie 7.0 | | | |
| BIM | NL | EN | FR |
| Bouwwerk Informatie Model | | ||
