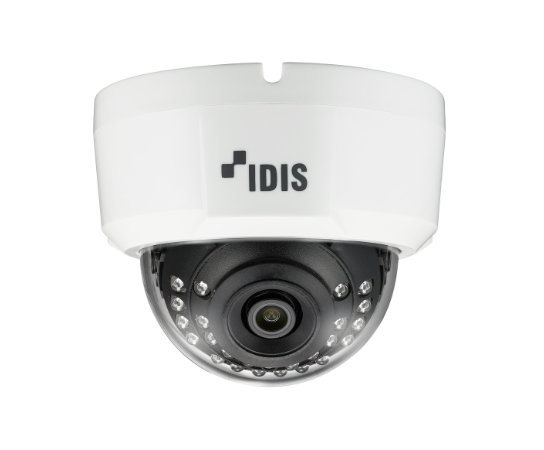

DirectCX Full HD IR Dome Camera
ㆍFull HD (1080p) resolution
ㆍFixed-focal Lens (f=4.0mm)
ㆍDay&Night (ICR)
ㆍTrue Wide Dynamic Range (WDR)
ㆍMotion Detection
ㆍDe-fog
ㆍHSBLC
ㆍCoaxial OSD Control
TC-D4211RX
Out of stock
Description
| Video | |
| Imager Sensor | 1/2.8″ CMOS Sensor |
| Effective pixels | 1945(H) X 1097(V), 2.13M Pixels |
| Total pixels | 1945(H) X 1109(V), 2.16M Pixels |
| Max. Resolution | 1920X1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f = 4.0mm |
| Aperture | F1.6 |
| IRIS Control | Fixed Iris |
| Angular Field of View | 82.7°(H), 44.2°(V), 97.1°(D) |
| Pan/Tilt Range | Pan : 0° ~ 360° Tilt : -5° ~ 60° Rotate : 0° ~ 360° |
| Min. illumination | COLOR : 0.1 Lux @ F1.6 B/W : 0 Lux (IR LED ON) |
| S/N Ratio | More than 50dB |
| Electronic Shutter Speed | AUTO / Manual(1/30,1/25Sec ~ 1/30000Sec) / FLICKER |
| Day/Night | YES(ICR) |
| IR DISTANCE (LEDs) | 15m (24ea) |
| Video Out | 1 HD BNC |
| Function | |
| AGC | 0 ~ 10 Level Adjustable |
| Brightness | 0 ~ 20 Level Adjustable |
| Sens-UP | OFF / x2 ~ x32 |
| WDR(Wide Dynamic Range) | OFF / ON (Low,Middle,High) |
| Backlight Compensation(BLC) | OFF/ON |
| HSBLC | 1 ~ 20 Level Adjustable(ALL DAY/NIGHT ONLY) |
| ACE(D-WDR/ATR-EX) | – |
| Motion Detection | OFF/ON (4 Zone) |
| Privacy Masking | OFF/ON (16 Zone) |
| Day & Night | Auto(AGC)/Color/B&W/EXTERN |
| Smart -IR(IR OPTIMIZER) | 0~20 Level Adjustable |
| White Balance | AUTO / AUTOext / PRESET / MANUAL (3,000K, 5,000K, 8,000K) |
| Digital Noise Reduction | OFF/LOW/MIDDLE/HIGH |
| Mirror | MIRROR,FLIP |
| D-ZOOM(EZOOM) | – |
| Sharpness | 0~10 Level Adjustable |
| De-fog | OFF/ON |
| GAMMA Correction | r = 0.45 ~ 0.75 |
| Lens Shading(LSC) | – |
| Environmental | |
| Out-door Ready | – |
| Storage Temperature | -20℃ ~ +60℃ (-4℉ ~ +140℉) (Humidity : 0% ~ 95%) |
| Operating Temperature | -10℃ ~ +50℃ (14℉ ~ +122℉) (Humidity : 0% ~ 90%) |
| Electrical | |
| Power Source | 12VDC |
| Power Consumption | 5W |
| Mechanical | |
| Dimensions Ø x H | Ø112.1mm x 88.3mm (Ø4.41″ x 3.48″) |
Additional information
| Camera: BLC / WDR | |
|---|---|
| Camera: Day & Night | |
| Camera: Focal length | |
| Camera: IR distance | |
| Camera: Lens type | |
| Camera: Maximum resolution | |
| Camera: Outdoor | |
| Camera: Mounting |
Downloads
| Firmware | |||
| Latest Version | | ||
| Manual | NL | EN | FR |
| Quick Guide | | | |
| Installation Manual | | | |
| Operating Manual | | | |
| Datasheet | NL | EN | FR |
| Latest Version | | | |
| A&E specifications | NL | EN | FR |
| Architectural and Engineering Specifications | | | |
| BIM | |||
| Building Information Model | | ||
Dimensions
