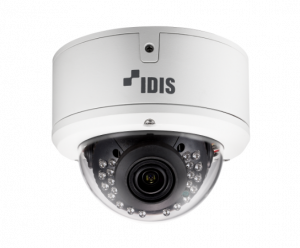

DirectCX Full HD IR Dome Camera
ㆍFull HD (1080p) resolution
ㆍVari-focal Lens (f=2.8mm ~ 12mm)
ㆍDay&Night (ICR)
ㆍTrue Wide Dynamic Range (WDR)
ㆍMotion Detection
ㆍDe-fog
ㆍHSBLC
ㆍCoaxial OSD Control
TC-D4222RX
Description
| Video | |
| Imager Sensor | 1/2.8″ CMOS Sensor |
| Effective pixels | 1945(H) X 1097(V), 2.13M Pixels |
| Total pixels | 1945(H) X 1109(V), 2.16M Pixels |
| Max. Resolution | 1920X1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Vari-focal |
| Focal Length | f = 2.8mm ~ 12mm |
| Aperture | F1.4 – 2.8 |
| IRIS Control | ELC |
| Angular Field of View | WIDE : 95.1°(H), 50.8°(V), 110.6°(D) TELE : 35.6°(H), 20.0°(V),40.8°(D) |
| Pan/Tilt Range | Pan : 0° ~ 360° Tilt : 7° ~ 90° |
| Min. illumination | COLOR : 0.1 Lux @ F1.4 B/W : 0 Lux (IR LED ON) |
| S/N Ratio | More than 50dB |
| Electronic Shutter Speed | AUTO / Manual(1/30,1/25Sec ~ 1/30000Sec) / FLICKER |
| Day/Night | YES(ICR) |
| IR DISTANCE (LEDs) | 30m (24ea) |
| Video Out | 1 HD BNC , 1 SD BNC |
| Function | |
| AGC | 0 ~ 10 Level Adjustable |
| Brightness | 0 ~ 20 Level Adjustable |
| Sens-UP | OFF / x2 ~ x32 |
| WDR(Wide Dynamic Range) | OFF / ON (Low,Middle,High) |
| Backlight Compensation(BLC) | OFF/ON |
| HSBLC | 1 ~ 20 Level Adjustable(ALL DAY/NIGHT ONLY) |
| ACE(D-WDR/ATR-EX) | – |
| Motion Detection | OFF/ON (4 Zone) |
| Privacy Masking | OFF/ON (16 Zone) |
| Day & Night | Color/B&W/EXTERN |
| Smart -IR(IR OPTIMIZER) | 0~20 Level Adjustable |
| White Balance | AUTO / AUTOext / PRESET / MANUAL (3,000K, 5,000K, 8,000K) |
| Digital Noise Reduction | OFF/LOW/MIDDLE/HIGH |
| Mirror | MIRROR,FLIP |
| D-ZOOM(EZOOM) | – |
| Sharpness | 0~10 Level Adjustable |
| De-fog | OFF/ON |
| GAMMA Correction | r = 0.45 ~ 0.75 |
| Lens Shading(LSC) | – |
| Environmental | |
| Out-door Ready | – |
| Storage Temperature | -20℃ ~ +60℃ (-4℉ ~ +140℉) (Humidity : 0% ~ 95%) |
| Operating Temperature | -10℃ ~ +50℃ (14℉ ~ +122℉) (Humidity : 0% ~ 90%) |
| Electrical | |
| Power Source | 12VDC, 24VAC |
| Power Consumption | 6W |
| Mechanical | |
| Dimensions Ø x H | Ø133mm x 104mm (Ø5.24″ x 4.09″) |
