Out of stock

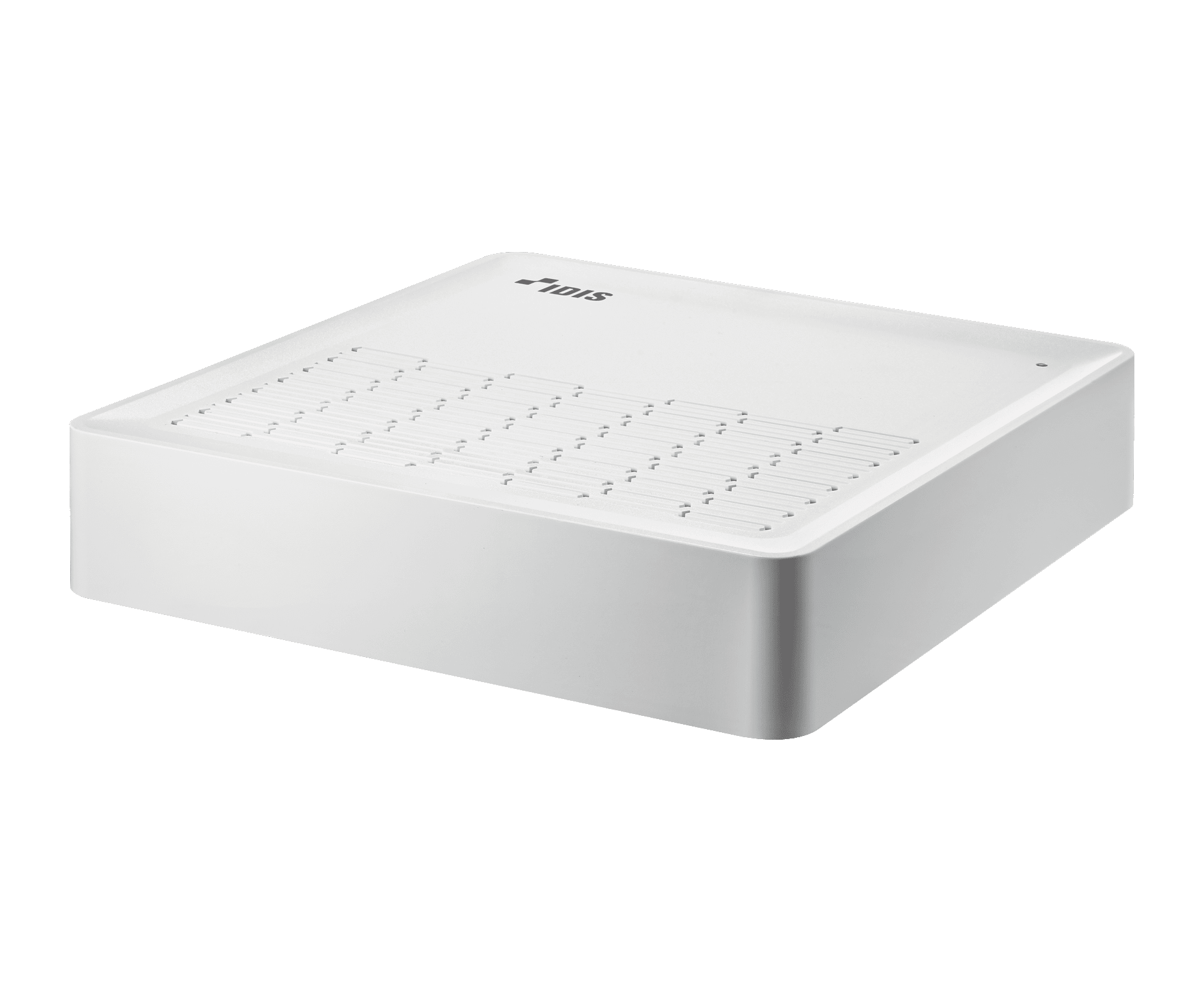

DirectCX 8channel Full HD Recorder
ㆍSupports HD-TVI / 960H / Analog Camera
ㆍUp to 240ips Full HD recording
ㆍFull HD Display with HDMI and VGA output
ㆍLong transmission distance over coax cable
ㆍSupports OSD control over Coax
ㆍSupports one click network configuration through FEN service
| VIDEO | |
| Video Inputs | 8 BNC (Multistandard Analog) |
| Supported Camera Types | 720P25, 720P30, 1080P25, 1080P30, CVBS(NTSC / PAL) |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI / VGA : 1920 x 1080, 1440 x 900, 1280 x 1024 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x12 |
| RECORDING | |
| Recording Resolution | 1920×1080, 1280×720, 960×480,720×480,960×240, 720×240 480×240, 360×240 |
| Frame Rate | 240ips@1080P |
| Compression | H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Motion detection, Video loss |
| PLAYBACK | |
| Performance | 8ch D1 synchronous playback |
| Search Mode | Time-lapse, Event log, Motion |
| Digital Zoom | x2 ~ x12 |
| STORAGE | |
| HDD | SATA x1 (Up to 6TB capacity, 3.5″) |
| Total Capacity | 6TB=6TB x1 |
| Data Export Device | USB HDD, USB Stick |
| NETWORK | |
| Client Connection | Fast Ethernet x1 |
| Transmission Speed | 30ips@Full HD |
| Remote Data Export | IDIS Player, AVI, JPG |
| Event Notification | Email (attach jpeg), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | No |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web |
| INTERFACE | |
| Audio In/ Out | – |
| Alarm In / Out | – |
| Alarm Reset In | – |
| Serial Interface | USB 2.0 x 2 |
| User Interface | Mouse |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 205mm x 44.5mm x 223,4mm |
| Unit Weight | 1.24kg (2.73lbs) (with 1 HDD) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | Adaptor Input: 100-240V AC, 50/60Hz, 1.5A, Output: 12V DC, 3A |
| Power Consumption | 12VDC, 1.11A, 13.32W |
| Approvals | FCC, CE, KC |
| Recorder: Video inputs | |
|---|---|
| Recorder: Video outputs | |
| Recorder: Display resolution | |
| Recorder: Display Speed | |
| Recorder: Max. Recording Throughput | |
| Recorder: Recording resolution | |
| Recorder / Camera: Compression |
| Firmware | |||
| Latest Version | | ||
| Manual | NL | EN | FR |
| Quick Guide | | | |
| Installation Manual | | | |
| Operating Manual | | | |
| Datasheet | NL | EN | FR |
| Latest version | | | |
| A&E specifications | NL | EN | FR |
| Architectural and Engineering Specifications | | | |
| BIM | |||
| Building Information Model | | ||
