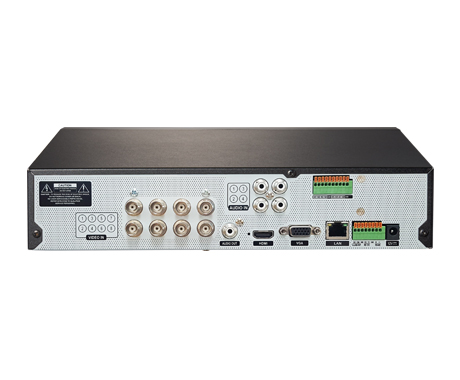

HD-TVI 8channel Full HD Real-time Recorder
ㆍSupports Multi Standard Analog Camera
ㆍUp to 240ips Full HD recording
ㆍFull HD Display with HDMI and VGA output
ㆍLong transmission distance over coax cable
ㆍSupports HD-TVI camera OSD control over Coax
ㆍExpandable up to 12TB using 2 SATA interfaces
ㆍSupports one click network configuration through FEN service
| VIDEO | |
| Video Inputs | 8 BNC (Multistandard Analog) |
| Supported Camera Types | 720P25, 720P30, 1080P25, 1080P30, CVBS(NTSC / PAL) |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI / VGA : 1920 x 1080, 1440 x 900, 1280 x 1024 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x12 |
| RECORDING | |
| Recording Resolution | 1920×1080, 1280×720, 960×480,720×480,960×240, 720×240, 480×240, 360×240 |
| Frame Rate | 240ips@1080P |
| Compression | H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Alarm in, Motion detection, Video loss, Text-in |
| PLAYBACK | |
| Performance | 4ch 1080P synchronous playback |
| Search Mode | Time-lapse, Event log, Motion, Text-in |
| Digital Zoom | x2 ~ x12 |
| STORAGE | |
| HDD | SATA x2 (Up to 6TB capacity for each disk) |
| Total Capacity | 12TB=6TB x2 |
| Data Export Device | USB HDD, USB Stick |
| NETWORK | |
| Client Connection | Fast Ethernet x1 |
| Transmission Speed | 30ips@Full HD per channel, shared with recording |
| Remote Data Export | IDIS Player, AVI, JPG |
| Event Notification | Email (attach clip (.cbf)), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter), NetFS(FTP) |
| Two-way Audio | Support |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web |
| INTERFACE | |
| Audio In/ Out | 4 RCA / 1 RCA + 1 HDMI |
| Alarm In / Out | 8 In / 1 Relay Out |
| Alarm Reset In | – |
| Serial Interface | RS232, RS485 (Terminal Block), USB 2.0 x 2 |
| User Interface | Mouse, IR Remote Control, Front Button, Network Remote Keyboard |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8″ x 2.4″ x 9.1″) |
| Unit Weight | 2.4kg (5.1lbs) (with 1 HDD) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | DC 12V 1.7A |
| Power Consumption | 20.4W |
| Approvals | FCC, CE, KC |
| Sequence | yes |
| Multiscreen on Spot Monitor | no |
| Color Control | brightness, constrast, saturation, hue |
| Record | |
| Scheduling Method | time-table type (by naming), schedule a week by hour |
| Recording Setup Programmable for each Camera | yes |
| ARCHIVE & Data Export | |
| Archiving | no |
| NETWORK | |
| Web Browser Access | Internal, External |
| Remote PTZ Control | yes |
| Remote PTZ Setup | yes |
| Remote PTZ Advanced Setup | yes |
| Remote Data Export | Clip Player, AVI, JPG, BMP |
| Recorder: Video inputs | |
|---|---|
| Recorder: Video outputs | |
| Recorder: Display resolution | |
| Recorder: Display Speed | |
| Recorder: Max. Recording Throughput | |
| Recorder: Recording resolution | |
| Recorder / Camera: Compression |
