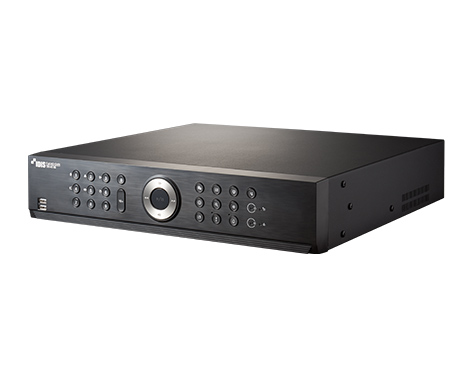

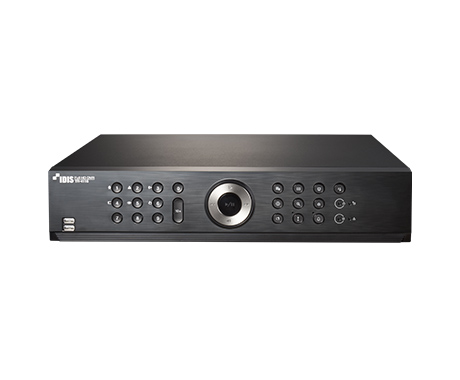

DirectCX 8channel Recorder
ㆍSupports Multi Standard Analog Camera
ㆍUp to 240ips Full HD recording
ㆍUp to 5MP resolution support
ㆍUHD Display with HDMI output
ㆍFull HD Display with HDMI and VGA output
ㆍSupports CVBS Spot Monitor
ㆍLong transmission distance over coax cable
ㆍSupports HD-TVI camera OSD control over Coax
ㆍExpandable up to 48TB using 4 SATA interfaces and 1 eSATA storage interface
ㆍSupports RAID 1
ㆍSupports one click network configuration through FEN service
| VIDEO | |
| Video Inputs | 8 BNC (Multistandard Analog) |
| Supported Camera Types | 5MP, 4MP, 3MP, 1080P30, 1080P25, 720P30, 720P25, CVBS(NTSC / PAL) |
| Video Outputs | 1 HDMI, 1 VGA, 1 BNC (Spot) |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024 VGA : 1920 x 1080, 1440 x 900, 1280 x 1024 Composite : 720×480(NTSC) , 720×576(PAL) |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x12 |
| RECORDING | |
| Recording Resolution | 5MP, 4MP, 3MP, 1920×1080, 1280×720, 960×480,720×480,960×240, 720×240 480×240, 360×240 |
| Frame Rate | 240ips@1080P |
| Compression | H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Alarm in, Motion detection, Video loss, Text-in |
| PLAYBACK | |
| Performance | 4ch 1080P synchronous playback |
| Search Mode | Time-lapse, Event log, Motion, Text-in |
| Digital Zoom | x2 ~ x12 |
| STORAGE | |
| HDD | SATA x4, eSATA x1, (Up to 6TB capacity for each disk) |
| Total Capacity | 48TB=6TB x(4 + (1×4)) |
| Data Export Device | USB HDD, USB Stick |
| NETWORK | |
| Client Connection | Gigabit Ethernet x1 |
| Transmission Speed | 120ips@Full HD |
| Remote Data Export | IDIS Player, AVI, JPG |
| Event Notification | Email (attach clip (.cbf)), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter), NetFS(FTP) |
| Two-way Audio | Support |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web |

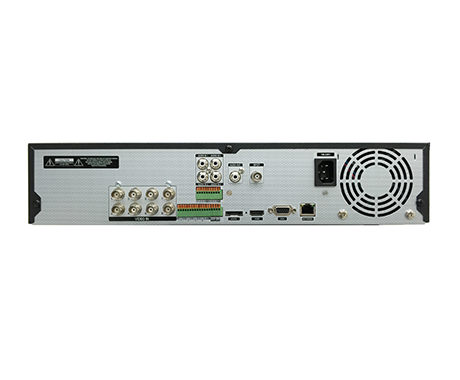

| INTERFACE | |
| Audio In/ Out | 4 RCA / 1 RCA + 1 HDMI |
| Alarm In / Out | 8 In / 4 Relay Out |
| Alarm Reset In | 1 |
| Serial Interface | RS232, RS485 (Terminal Block), USB 2.0, USB 3.0 |
| User Interface | Mouse, IR Remote Control, Front Button, Network Remote Keyboard |
| GENERAL | |
| Operating System | Embedded Linux |

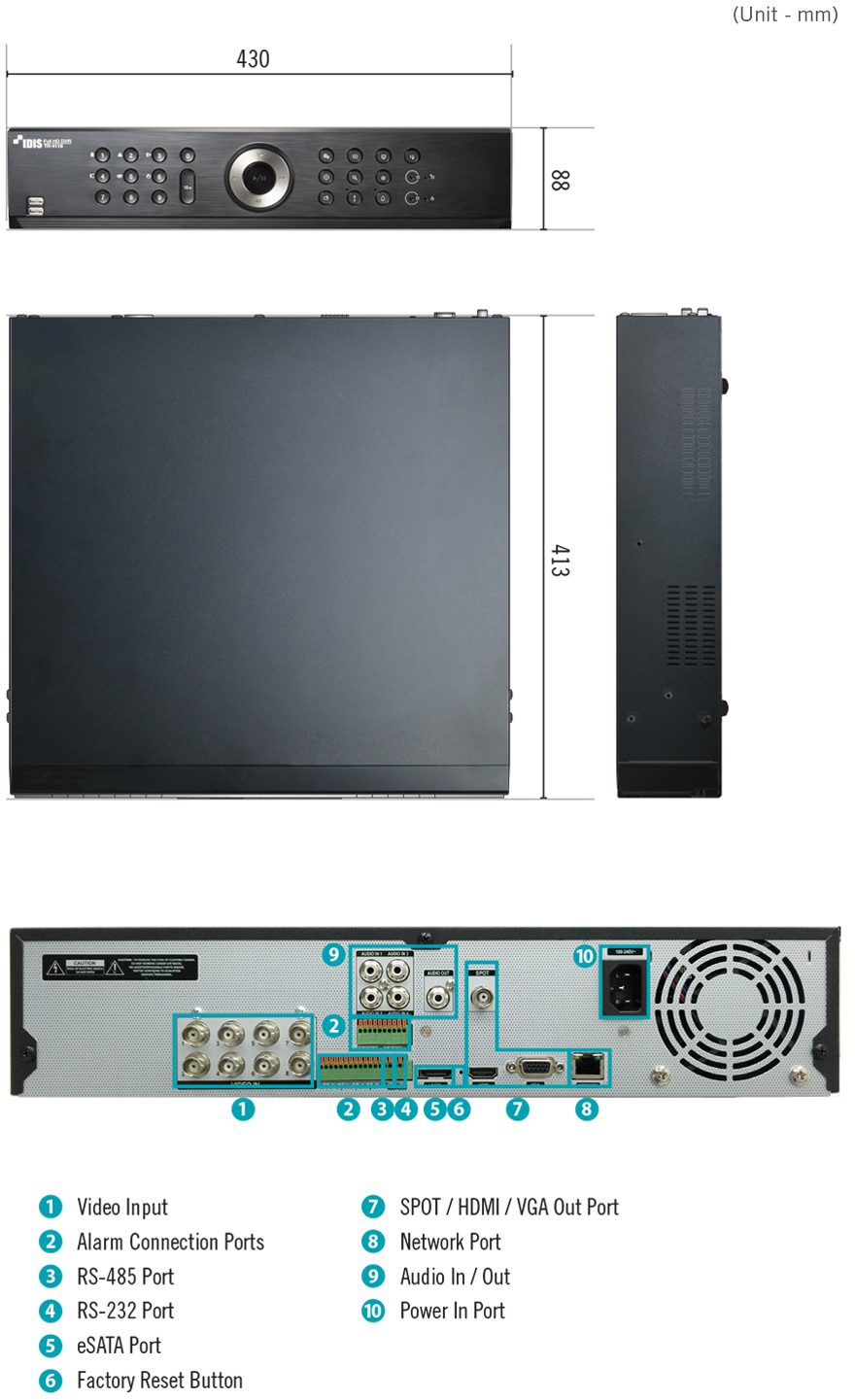

| UNIT Dimensions (W x H x D) | 430mm x 88mm x 413 mm (16.9″ x 3.5″ x 16.3″) |
| Unit Weight | 6.0kg (13.2lbs) (with 1 HDD) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | AC 100-240 V, 50/60Hz, 1.2 – 0.6A |
| Power Consumption | 76W |
| Approvals | FCC, CE, KC, CB, UL, PSE |
| Record | |
| Scheduling Method | time-table type (by naming), schedule a week by hour |
| Recording Setup Programmable for each Camera | yes |
| ARCHIVE & Data Export | |
| Archiving | no |
| NETWORK | |
| Web Browser Access | Internal, External |
| Remote PTZ Control | yes |
| Remote PTZ Setup | yes |
| Remote PTZ Advanced Setup | yes |
| Remote Data Export | Clip Player, AVI, JPG, BMP |
| Recorder: Video inputs | |
|---|---|
| Recorder: Video outputs | |
| Recorder: Display resolution | |
| Recorder: Display Speed | |
| Recorder: Max. Recording Throughput | |
| Recorder: Recording resolution | |
| Recorder / Camera: Compression |
